Process Calibrators

• Measure & Source 8 T/C Types Plus mV
• 0.005% Accuracy
• Cold Junction Compensation
• Auto-Step Smulation

•Ranges from Vacuum to 1000 Bar
•Pump, Quick Connectors, Hose(s) & Accessories
•Aluminium or Waterproof Case

•Ranges from Vacuum to 1000 Bar
•Pump, Quick Connectors, Hose(s) & Accessories
•Aluminium or Waterproof Case

• Sources & Reads T/C Types J, K, T, E, R, S, B, N, C, G, C, P, L, U & mV
• Resolution to 0.1°C; Accurate to 0.2°C
• Quick and Easy Fine and Course Output Adjustment
• Automatic Cold Junction Compensation
• °C / °F Switchable
• 3 Point EZ-Check Switch

• Calibrate T/C & RTD instruments to 0.01 °C
• Diagnose corrosion & broken sensor wiring
• T/C Types: J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P (Platinel)
• RTD Types: Pt 10,50,100,200,500 & 1000Ω (3850),
• RTD Types: Pt 100Ω (alpha=3902,3916,3926), Cu 10 & 50Ω & Ni 120Ω
• Internal Cold Junction Compensation
• Compatible with pulsed excitation currents

• Optional Pressure Modules
• mA, V, mV, Frequency, 9 RTD & 14 T/C Types
• pH Probe Simulator
• Auto-Step & Auto-Ramp Functions
• HART® Compatibility

• High Accuracy
• 10 Type RTD Calibrator
• Compatible with pulsed excitation currents
• 3 Year Warranty

• mA, V, mV, Frequency, 9 RTD & 14 T/C Types
• Auto-Step & Auto-Ramp Functions
• HART® Compatibility

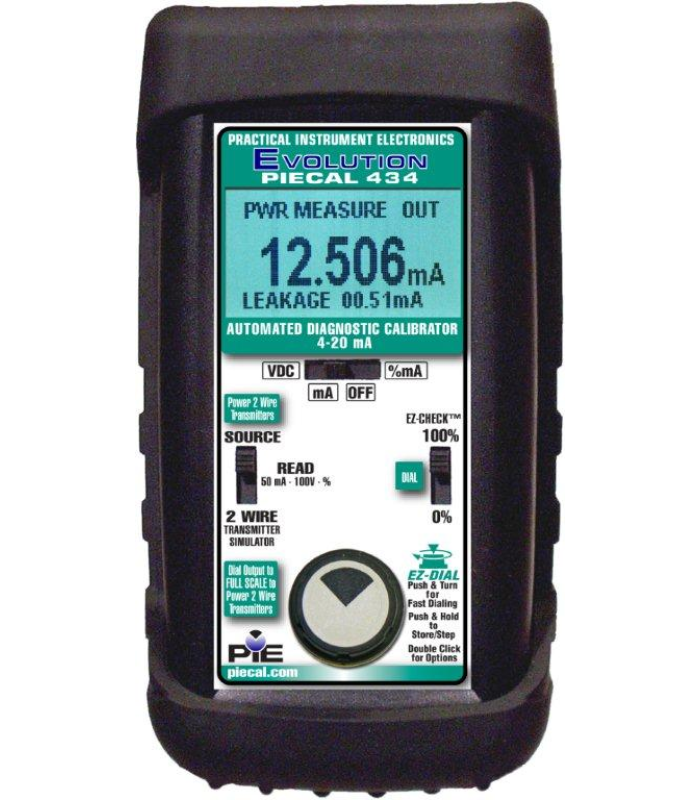

• Sources from 0.00 to 24.00 mA
• Reads from 0.00 to 52.00 mA / -99.99 to +99.99V DC
• 0.025% Accuracy
• 0.01 mA / 10 mV Resolution
• 27V DC Loop Power Supply
• Drives up to 1200Ω

• Sources & Reads from 0.000 to 24.000 mA
• Reads from -60.00 to +60.00V DC
• 0.01% of Reading Accuracy
• 0.001 mA / 10 mV Resolution
• 24V DC Loop Power Supply
• Drives up to 1200Ω
• HART® Compatible 250Ω Loop Resistor

• Sources & Reads from 20.000 KHz to 1 CPH
• Totalizes from 1 to 99999 Inputs/Outputs
• Counts Inputs from 1.0 to 100.0 Minutes
• Reads from 50 mV to 120V
• 0.005% Accuracy
• 0.01 Hz Resolution

• Dual Display Feature
• Optional Pressure Modules
• mA, V, mV, Frequency, 9 RTD & 14 T/C types
• Patented Troubleshooting Tools

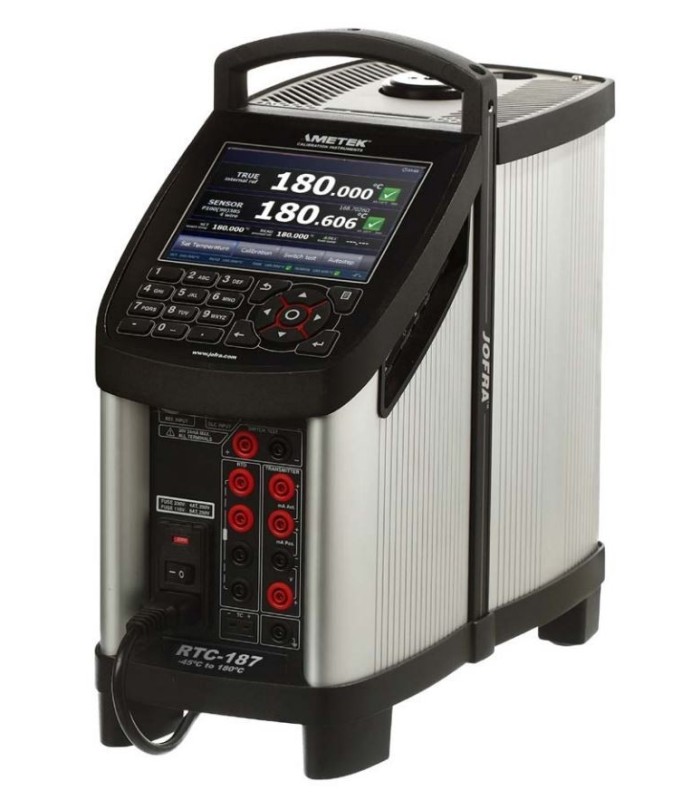

• Reference Temperature Calibrator Series
•Range: -45 to +180°C
• Interchangeable Inserts
• Fast Heating / Cooling
• Optional Dynamic Load Compensation (DLC) System
• Optional Reference Sensor Input
• Optional Sensor Under Test Input

• Reference Temperature Calibrator Series
•Range: -45 to +155°C
• Interchangeable Inserts
• Fast Heating / Cooling
• Optional Dynamic Load Compensation (DLC) System
• Optional Reference Sensor Input
• Optional Sensor Under Test Input

• Suits Crystal HPC50 Series Calibrators
• Range: -1 Bar to 30 Bar
• 0.035% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Reference Temperature Calibrator Series
• RTC-158: -22 to +155°C Range
• RTC-250: 28 to 155°C Range
• Large 160 x 63.5mm Well with Optional Liquid Bath Kit
• Optional Dynamic Load Compensation
• Optional Reference Sensor Input
• Optional Sensor Under Test Input

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.05% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Reference Temperature Calibrator Series
• Range: -30 to +155°C<
• Interchangeable Inserts
• Fast Heating / Cooling
• Optional Dynamic Load Compensation (DLC) System
• Optional Reference Sensor Input
• Optional Sensor Under Test Input

•Ranges from Vacuum to 350 Bar
•Pump, Quick Connectors, Hose(s) & Accessories
•Aluminium or Waterproof Case

• Suits Crystal HPC50 Series Calibrators
• Range: -1 Bar to 300 Bar
• 0.035% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal HPC50 Series Calibrators
• Range: -1 Bar to 700 Bar
• 0.035% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal HPC50 Series Calibrators
• Range: -1 Bar to 10 Bar (150 psig)
• 0.035% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

•Ranges from Vacuum to 350 Bar
•Pump, Quick Connectors, Hose(s) & Accessories
•Aluminium or Waterproof Case

Barometric Pressure Sensor for nVision Reference Recorder

• Plug in module enables absolute modes
• 700.0 to 1100.0 mbarA Range
• ±0.5 mbar Accuracy

Pressure module for the Crystal nVision Reference Recorder

• Intrinsically Safe Certified
• 0 to 300 Bar Range
• 0.05% of Reading Accuracy
• 7/16"-20 MP Female Connection

DC measurement module for the Crystal nVision Reference Recorder

• IECEx intrinsically safe certified
• 0 to 55 mA / 28V DC Ranges
• 0.015% of Reading Accuracy
• 0.001 mA / V Resolution
• HART® Compatible 250Ω Loop Resistor

RTD based measurement module for the Crystal nVision Reference Recorder

• Intrinsically Safe Certified
• 0 to 400Ω Range
• 0.015% of Reading Accuracy
• 0.01Ω Resolution
• Compatible with 2, 3 & 4-Wire Pt100Ω RTD / PRT Sensors

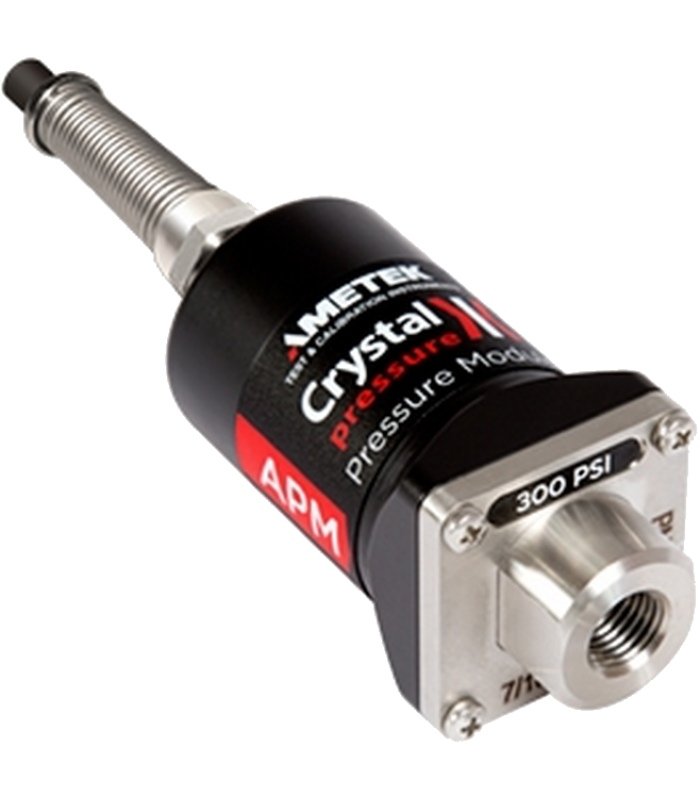

• Suits Crystal HPC50 Series Calibrators
• Range: -1 Bar to 100 Bar (1500 psig)
• 0.035% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal HPC50 Series Calibrators
• 0.015% of Reading + 0.02Ω Accuracy
• Fully Temperature Compensated
• Supports 2, 3 or 4 wire RTD's
• LEMO Probe Connector
• Stainless Steel housing

• Suits Crystal HPC50 Series Calibrators
• Range: -1 Bar to 1 Bar (15 psig)
• 0.035% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

Pressure module for the Crystal nVision Reference Recorder

• Intrinsically Safe Certified
• 0 to 700 Bar Range
• 0.05% of Reading Accuracy
• 7/16"-20 MP Female Connection

Pressure module for the Crystal nVision Reference Recorder

• Intrinsically Safe Certified
• -1 to 10 Bar Range
• 0.025% of Reading Accuracy
• 7/16"-20 MP Female Connection

Pressure module for the Crystal nVision Reference Recorder

• Intrinsically Safe Certified
• -1 to 30 Bar Range
• 0.025% of Reading Accuracy
• 7/16"-20 MP Female Connection

Pressure module for the Crystal nVision Reference Recorder

• Intrinsically Safe Certified
• -1 to 3 Bar Range
• 0.025% of Reading Accuracy
• 7/16"-20 MP Female Connection

• Suits Crystal HPC50 Series Calibrators
• Range: -1 Bar to 3 Bar
• 0.035% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.05% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection

Pressure module for the Crystal nVision Reference Recorder

• Intrinsically Safe Certified
• 0 to 1000 Bar Range
• 0.05% of Reading Accuracy
• 7/16"-20 MP Female Connection

 Ex ia IIC T4 Gb

• IECEx & ATEX Zone 0 Intrinsically Safe
• 0.05% of Reading Accuracy
• Vacuum to 3000 PSI Ranges
• Reads from 0.000 to 55.000 mA
• Up to 0.001 PSI / 0.001 mA Resolution

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.025% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.05% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.025% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.05% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Reference Temperature Calibrator Series
•Range: 10 to 700°C
• Interchangeable Inserts
• Fast Heating / Cooling
• Optional Dynamic Load Compensation (DLC) System
• Optional Reference Sensor Input
• Optional Sensor Under Test Input

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.05% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

• Suits Crystal / Jofra HPC, ASC, CSC & AMC Series Calibrators
• 0.025% of Reading Accuracy
• Fully Temperature Compensated
• 7/16"-20 MP Female Connection
• 1/4in MNPT Pressure Adapter (options available)

 Ex ia IIC T4/T3 Ga

• Zone 0 Intrinsically Safe
• Vacuum to 700 Bar Single or Dual Pressure Ranges
• Up to 4 Inputs with External Pressure & Temperature Modules
• 0.035% of Reading Pressure Accuracy
• 0.015% of Reading mA, VDC & Temperature Accuracy
• Barometric Option

•Ranges from Vacuum to 1000 Bar
•Pump, Quick Connectors, Hose(s) & Accessories
•Aluminium or Waterproof Case

• mA, Ω, mV, V, Frequency & Pulse
• 16 RTD & 13 T/C Types
• Up to 0.01% of Reading Accuracy
• Optional Pressure Modules to 1000 Bar

 Ex ia IIC T4 Gb

• IECEx & ATEX Zone 0 Intrinsically Safe
• 0.05% of Reading Accuracy
• Vacuum to 5000 PSI Ranges
• Reads from 0.000 to 55.000 mA
• Up to 0.001 PSI / 0.001 mA Resolution

• Compact Temperature Calibrator Series
• -25 to +155°C Range
• Up to 0.2°C Accuracy
• Interchangeable Inserts
• 120mm Immersion Depth
• Fast Heating / Cooling
• Mains Power Variance Immunity Circuitry
• Optional Reference Sensor Input
