Softing PROFIBUS Tester 5
| Manufacturer | SOFTING INDUSTRIAL AUTOMATION |
| Includes |
|
| Manufacturer Model | DDA-NN-006014 |
Softing PROFIBUS Tester 5
| Manufacturer | SOFTING INDUSTRIAL AUTOMATION |
| Includes |
|
| Manufacturer Model | DDA-NN-006014 |
Trade Customers
Login for your specific pricing.
Queries or Big Orders?
0 in Stock (Available for Order)
Overnight Delivery Australia Wide*Stocked items are dispatched daily with express overnight shipping to most areas.
-
Trade Pricing & Price Match Guarantee
Wholesale/resale and large quantity volume discounts are available. Contact us.
-
Emergency Services, Fire, Rescue, Defence or Government?
Contact us for special discounts for Australian fire & rescue, EMS and govt depts.
-
Buy Local. We're Australians Too!
Transtek has been a proud family-owned Australian business since 1998.

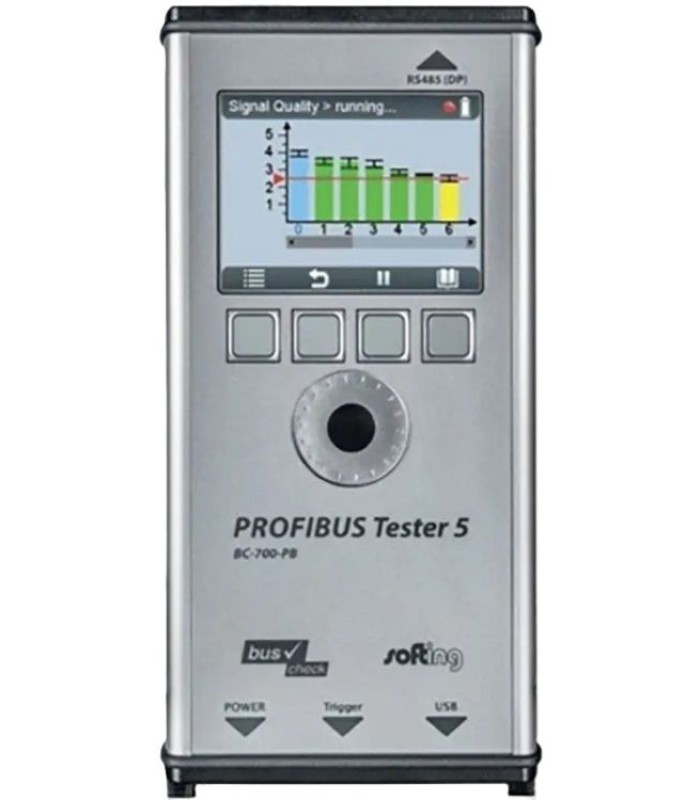

The Softing PROFIBUS Tester 5 (BC-700-PB) is a powerful diagnostic and troubleshooting tool for testing cables, measuring signals and analysing communications in PROFIBUS networks.
The Tester 5 is battery-powered with a graphical display for quick results when working in stand-alone mode.
PROFIBUS PA networks can also be analysed.
The Tester 5 supports the export of test results for remote analysis.
Test PROFIBUS Cable, Signals and Data With One Handheld Tester
- Combination of PROFIBUS signal tester, oscilloscope, protocol analyzer, master simulator and cable tester functionality in a single handheld diagnostic tool
- Includes stand-alone mode plus extended PC-based diagnostics
- Suited for PROFIBUS installation, setup, commissioning, documentation, acceptance testing, network optimization, preventive maintenance, troubleshooting as well as laboratory tests
- Ideal for first time users as well as for PROFIBUS specialists
Highly Mobile for PROFIBUS Testing Even Without a Laptop
- Battery-powered operation; testing while unplugged reduces risk of ground loops
- Graphical display provides easy-to-understand presentation of test results
- Comprehensive network tests are built-in to PROFIBUS Tester 5 without requiring a laptop PC
Enhanced Diagnostic Features and Analytical Software
- Many additional features for executing, analyzing and managing PROFIBUS tests (Trend, Topology Scan, Master Simulator, Oscilloscope, Frame Analyzer)
- Quick Test and User-Controlled Test for easy network status assessment at the push of a button
- Generation of test reports describing the actual status of the PROFIBUS installation
Optional Measuring Adapter for MBP (Manchester Coded Bus Powered) Signals
- Specific signal analysis supporting MBP Physics (feeding voltage, signal deviation, signal polarity, bitrate divergence)
- Complete protocol analysis directly at the PROFIBUS PA segment
Additional Products and Services |
|
| DDL-NL-006010 | PA adapter + cable set |
| ACA-NN-006033 | D-Sub to M12 adapter set with T-piece and M12 bus termination for PROFIBUS DP |
| DDA-ZZ-004010 | Digital Fieldbus Leakage Current Clamp for Locating EMC Problems, 40 ..1000 Hz, MIN/MAX, Data Hold, Measuring Cables, supplied in a Handy Case (fits in Empty Compartment of Carrying Case) |
| ACL-NN-006037 | D-Sub Service Interface with Active Bus Termination and 90° Angled Connector for PROFIBUS DP |
| ACA-NN-006034 | M12 Service Interface for PROFIBUS DP, Comprising M12 T-Piece, End Cap and M12 Connection Cable (1m) |
| ACA-NN-006031 | EIA-485 D-Sub adapter cable for testing operational networks with reduced influence on segment operation |
