The Ralston Instruments QTQT-HOS-1m is a 1m Quick-Test microbore pressure calibration hose.
Solid brass female Quick-Test hose-end connections resist corrosion, tough conditions and everyday wear and tear.
The QTQT-HOS-1m is part of Ralston's Quick-Test system of pressure hoses and adapters, which offers a universal range of direct connections to virtually any device.

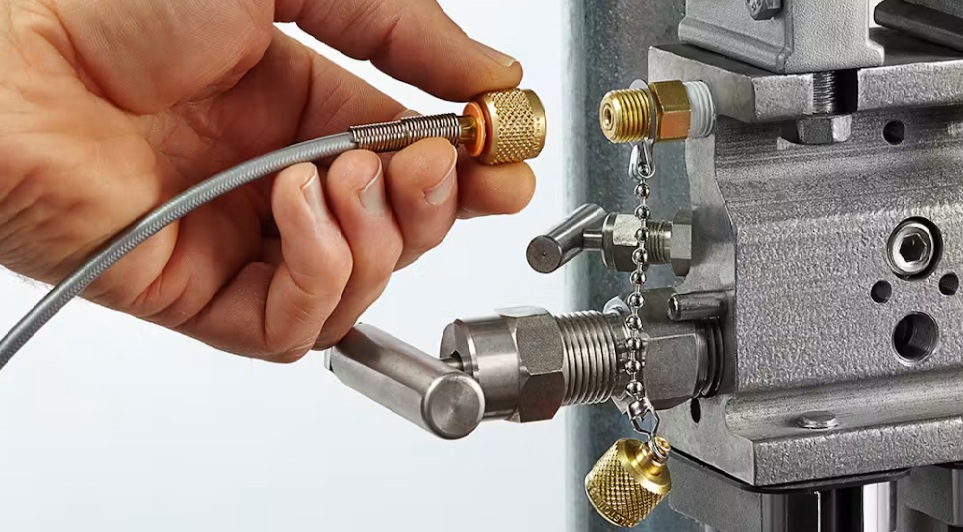

Ralston Quick-Test hoses are self-venting and can be safely attached and detached by hand.
Fast, leak-free, high-pressure connections up to 475 bar / 6,900psi are easily achieved without a wrench or thread sealant.
A burst pressure rating of 1,860 bar / 27,000psi ensures safety and reliability in the field.

With a minimum bend radius of just 26mm, Quick-test hoses are tough, highly flexible and engineered to maintain pressure regardless of twists and turns.
A low volume, 3mm inner diameter ensures Ralston's microbore hoses provide efficient, instant pressure and a highly stable connection during vacuum or pressure calibrations.

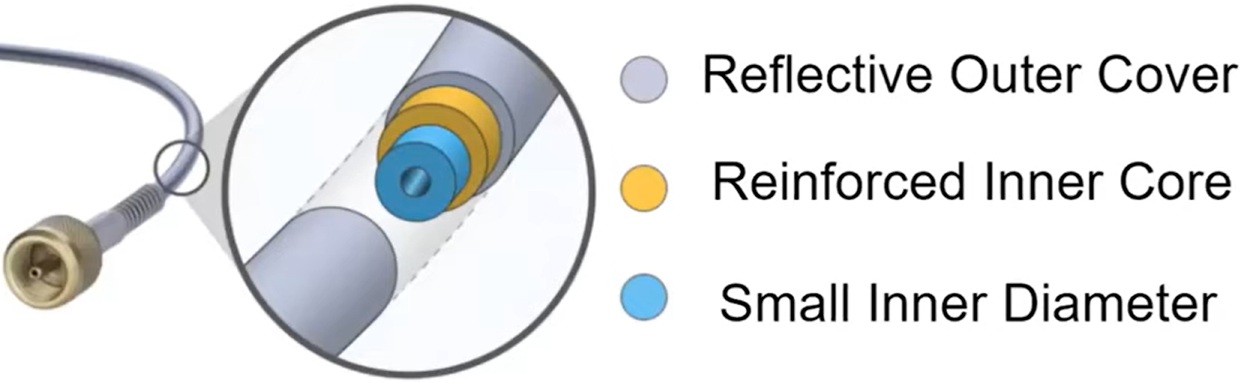

• A reflective outer cover reduces temperature sensitivity in operations from -40 to +60°C
• A reinforced polyamide inner core prevents twisting and bending from volume changes across the hose
• A small inner diameter is ideal for transmitting high pressure while consuming very little gas or fluid

Alternative Ralston Quick-Test 1m Hoses
QSQS-HOS-1m with stainless steel hose-end fittings suits aggressive media or harsh applications.
Find the correct pressure calibration hose for your application.
If you need multiple hose lengths or connections to a diverse range of fittings, Transtek's pressure calibration hose and adapter kits cover most options and help simplify your work.

Suitable Applications for Ralston Quick-Test Hoses
Ralston hoses can be used across a wide variety of industrial or laboratory applications including gas sampling, pressure calibration, pressure reading and testing.
Ralston's high quality products strive to address critical issues such as vibration, air-tight sealing, corrosion, thermal shock, installation and compliance with industry standards.

Advantages of the Ralston Quick-Test System
Ralston's comprehensive range of interchangeable Quick-Test adapters and Quick-Test hoses provide connections for almost any pressure testing application.

• Quick-Test adapters and hoses connect, tighten and disconnect without a wrench
• Pressure-tight, leak-free, O-ring seals require only hand tightening
• Self-venting mechanisms allow safe disconnection under pressure
• The widest range of connections and size options

• Adapters available with or without integrated check-valves
• 100% brass or stainless steel test adapters and fittings resist corrosion and heavy-duty use
• Compatible with all major pressure media, applications and connection standards
