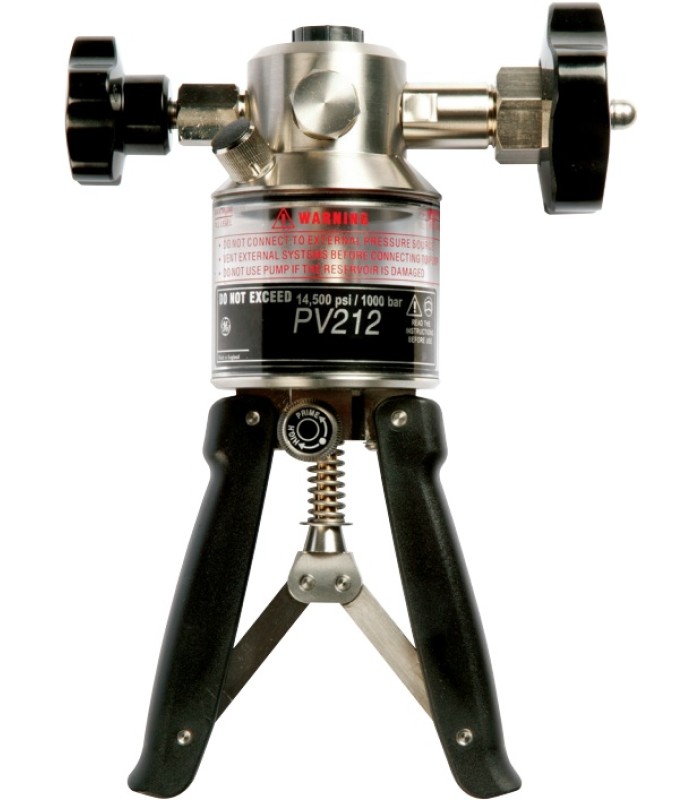

Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)

Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)
Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)
Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)
Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)
Manufacturer Druck
Pressure Rating
Features
  • Rugged, stainless steel and brass construction
  • Large, 100cc volume reservoir
  • Compatible with distilled water or low viscosity mineral oil
  • Sealed housing prevents leaks, runs and rust
  • Top port for connection to pressure reference
  • Side port for connection to device under test
  • Vernier adjustment for fine control
  • Priming / high pressure selector reduces effort
  • Extremely efficient pumping action
Includes
  • 1/4" female NPT gauge connection
  • 1/4" female NPT hose connection
  • G3/8" male BSPP adapter
  • G1/4" male BSPP adapter
  • Instructions
Manufacturer Model
PV212-23-P
Warranty
12 Months

Druck PV212 Hydraulic Pressure Hand Pump (1,000 Bar)

Manufacturer Druck
Pressure Rating
Features
  • Rugged, stainless steel and brass construction
  • Large, 100cc volume reservoir
  • Compatible with distilled water or low viscosity mineral oil
  • Sealed housing prevents leaks, runs and rust
  • Top port for connection to pressure reference
  • Side port for connection to device under test
  • Vernier adjustment for fine control
  • Priming / high pressure selector reduces effort
  • Extremely efficient pumping action
Includes
  • 1/4" female NPT gauge connection
  • 1/4" female NPT hose connection
  • G3/8" male BSPP adapter
  • G1/4" male BSPP adapter
  • Instructions
Manufacturer Model
PV212-23-P
Warranty
12 Months
Loading..

Trade Customers

Login for your specific pricing.

Queries or Big Orders?

[email protected]


0 in Stock (Available for Order)
Expected availability is 5 to 6 weeks.
Configure this item to show pricing…
Register/Login

The Druck PV212-23 high pressure hydraulic hand pump is designed to quickly and easily generate pressures up to 1,000 bar / 15,000psi.

Heavy duty stainless steel and brass construction materials ensure the PV212 pump is rugged, designed for everyday use in the field and compatible with most fluid media.

The built-in vernier provides excellent control and is easy to adjust even at high pressures.

The dual stage PV212 includes a selector valve to increase priming speed and greatly reduce the pumping effort.

Main Features:

  • Hydraulic pressure source to 1,000 bar (15,000 psi)
  • Compatible with mineral oil or distilled water
  • Quick priming and pressure generation
  • 100cc transparent reservoir
  • Vernier adjust for fine control

Includes:

  • 1/4" female NPT gauge connection
  • 1/4" female NPT hose connection
  • G1/4" male BSPP adapter
  • G3/8" male BSPP adapter
