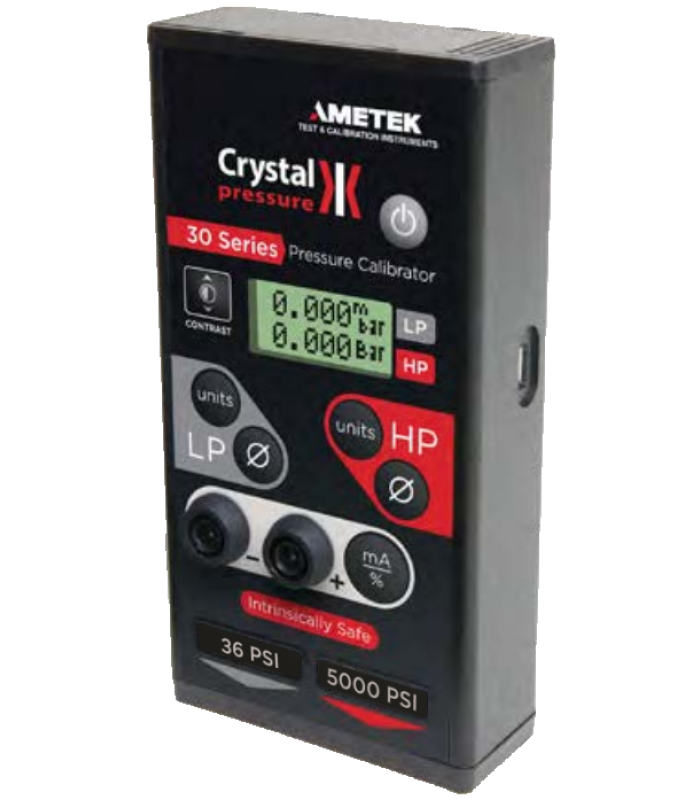

Crystal IS33-36/1500PSI Dual-Range Pressure Calibrator

Crystal IS33-36/1500PSI Dual-Range Pressure Calibrator
Crystal IS33-36/1500PSI Dual-Range Pressure Calibrator
Crystal IS33-36/1500PSI Dual-Range Pressure Calibrator
Crystal IS33-36/1500PSI Dual-Range Pressure CalibratorCrystal IS33-36/1500PSI Dual-Range Pressure CalibratorCrystal IS33-36/1500PSI Dual-Range Pressure Calibrator
Manufacturer Crystal Engineering
Application
Country of Manufacture US
Ex Cert
Ex Zone
Features
  • Accuracy of 0.05% of reading
  • Compensated for use with media between 0 and 50°C
  • Measures 0 to 55 mA with 0.001 mA resolution and 0.025% accuracy
  • Accepts gases and fluids compatible with stainless steel and Viton®
  • 316 stainless steel manifold for 1500 PSIG sensor (optional for 36 PSIG)
  • 1/8 FNPT pressure connections
  • Micro-USB port for configuration and data acquisition
  • Rugged, extruded aluminium casing
  • Lightweight, compact design
Includes
  • Battery (9V)
  • ISO / IEC 17025 calibration certificate
  • Manual
Manuf. Model
IS33-36/1500PSI
Measurement Type
Pressure Type 317
Returns Policy
Product is built to order and therefore not covered by our 7 day NQA guarantee. Your statutory consumer rights are unaffected.
Warranty
12 Months

Crystal IS33-36/1500PSI Dual-Range Pressure Calibrator

Manufacturer Crystal Engineering
Application
Country of Manufacture U.S.
Ex Cert
Ex Zone
Features
  • Accuracy of 0.05% of reading
  • Compensated for use with media between 0 and 50°C
  • Measures 0 to 55 mA with 0.001 mA resolution and 0.025% accuracy
  • Accepts gases and fluids compatible with stainless steel and Viton®
  • 316 stainless steel manifold for 1500 PSIG sensor (optional for 36 PSIG)
  • 1/8 FNPT pressure connections
  • Micro-USB port for configuration and data acquisition
  • Rugged, extruded aluminium casing
  • Lightweight, compact design
Includes
  • Battery (9V)
  • ISO / IEC 17025 calibration certificate
  • Manual
Manuf. Model
IS33-36/1500PSI
Measurement Type
Pressure Type Vacuum
Returns Policy
Product is built to order and therefore not covered by our 7 day NQA guarantee. Your statutory consumer rights are unaffected.
Warranty
12 Months
Loading..

Register/Login
Discounts are available for larger orders and resellers. Please login to review your specific pricing or contact us to open a trade account.

 II 2G Ex ia IIC T4 Gb
(FTZU 10.0018 X)
ATEX  II 2G Ex ia IIC T4
(FTZU 06 ATEX 0010X)

With the smallest size, the widest range and the highest performance, the Crystal 30 series puts a zone 1 hazardous area certified calibration tool box in the palm of your hand.

The intrinsically safe IS33 dual-range pressure calibrator is light and compact enough to carry in your shirt pocket. The IS33's internal pressure sensors provide a high 0.05% of reading accuracy, bringing laboratory quality precision to equipment calibrations out in the field. Crystal's perfectly elastic, crystalline sensors never deform and always return to their original shape even after overpressure.

Every IS33 comes with an ISO 17025 (A2LA accredited, NATA equivalent) calibration report and is temperature compensated from 0 to 50°C to guarantee reliably accurate pressure and mA readings across a wide range of conditions.
